Drag Bits (for softer formations)

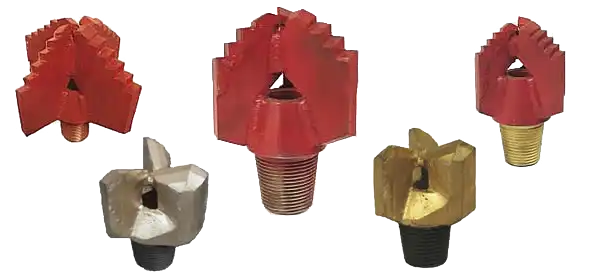

We supply a variety of high quality drag bits for rotary drilling in soft formations. Choose from different wing configurations and cutting edges.
Including chevron-style , step-style, three-wing, four-wing, regular and heavy step, replaceable blade system, weld on wing drag bits, and hole openers.
For use in various industries; Water Well, Geo Exchange, Environmental, Mining, Exploration, etc.
Product Specifications
- Select tungsten carbide inserts 3/16″ thick are standard
- Carbide inserts are individually hand soldered using nickel silver rod
- Bits fabricated are welded with high tensile strength 7018 rod
- Drag bits are welded solid at the nose for durability
- Blades originate from 4140 heat-treated tool steel forgings
- Forgings are milled to better seat the carbide inserts
- Relief is hand ground behind carbide inserts for maximum performance
- Bits can be built to the gauge tolerances required

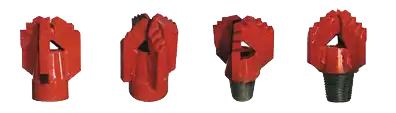

Chevron-Type Drag Bits
Chevron-type drag bits are recommended for drilling in slightly harder and more consolidated materials than step-type drag bits, such as hard shales, limestones, and unconsolidated gravels.
| Bits | Stock Sizes | Available Stock Threads |
|---|---|---|
| Three-Wing and Four-Wing Chevron | 3 7/8″ – 26″ | 2 3/8″, 2 7/8″, 3 1/2″, 4 1/2″, 6 5/8″ API regular pin |
| Three-Wing and Four-Wing Chevron Kelly Bit | 3 7/8″ – 26″ | MHJR, MHR, FEDP, IF |
Step-Type Drag Bits
Step-type drag bits come in a variety of wing counts, steps, and sizes to accommodate drilling in a variety of formations, from sand and clay to shale, limestone, gravel, and more.
Three-Wing and Four-Wing – Three-wing bits tend to drill faster, whereas four-wing bits are longer lasting, more durable, and drill a straighter hole.
Regular Step and Heavy Step – Regular Step bits develop smaller cuttings, whereas Heavy Step bits are more durable and are used in harder formations. Heavy Step bits have longer and wider steps and contain larger carbide for cutting. The quantity of steps is largely determined by the size of bit.
| Bits | Stock Sizes | Available Stock Threads |
|---|---|---|
| Three-Wing and Four-Wing Regular Step | 3 7/8″ – 26″ | 2 3/8″, 2 7/8″, 3 1/2″, 4 1/2″, 6 5/8″ API regular pin |
| Three-Wing and Four-Wing Heavy Step | 5 1/2″ – 26″ | 2 3/8″, 2 7/8″, 3 1/2″, 4 1/2″, 6 5/8″ API regular pin |
| Three-Wing and Four-Wing Regular Step Kelly Bit | 5″ – 26″ | MHJR, MHR, FEDP, IF |
| Three-Wing and Four-Wing Heavy Step Kelly Bit | 5 1/2″ – 26″ | MHJR, MHR, FEDP, IF |

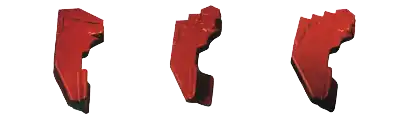

Replaceable Blade Drag Bit System
A replaceable blade drag bit system is the most cost-effective and versatile bit available.
Cost Effectiveness – The blade system allows you to replace a single blade when it is worn or damaged versus replacing the whole bit. Purchase multiple sets of blade types and sizes for much less than the cost of unitized bits. Keep a variety of blades on hand to ensure your time onsite is the most efficient.
Versatility – From 3 7/8″ three-step bits to 6 1/4″ four-step bits to the various sized chevron bits, this replaceable blade system offers versatility to meet your many different drilling needs.
| Part | Options |
|---|---|
| Head and Ring Assembly | Three-Wing, Four-Wing |
| Blade Adapter Sub | MHJR, MHR, FEDP, IF |
| Replacement Parts | Stock Sizes |
|---|---|
| Chevron blade | |
| 3 7/8″ – 6 1/4″ | |
| Step-Type blade | 3 7/8″ – 6 1/4″ |
Weld On Wing
High quality carbide-tipped wings that weld onto your pipe or threads are cost effective and versatile.
- Save on shipping charges by ordering wings instead of the whole bit
- Any size
- Any cutting structure.
Auger Bit
| Bit | Stock Sizes | Thread |
|---|---|---|
| Two-Step Auger Bit | 3 5/8″ – 4″ | 2″ HDFA Box |
Hole Opener
These hole openers meet a variety of needs, from expanding test holes in water wells to drilling holes for pylons.
- Any thread
- Any size
- Any length
- Many numbers of wings
