Description
These torch guides are great to help cut straight lines on 6″, 8″, 10″, 12″, 14″ and 16″ steel casing. Just clamp around the casing, rest the cutting tip on the guide, and cut a nice straight line.
With a little practice you can make bevel cuts by tilting your torch.

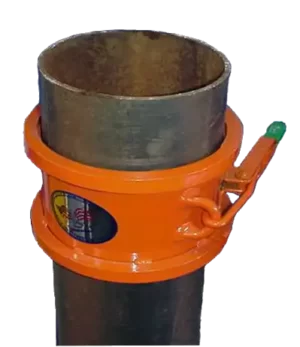

Torch Guide on pipe
Torch Guides Group
| Size | ID | OD | Height | Weight |
|---|---|---|---|---|
| 6″ | 6 1/2″ | 7 3/4″ | 4 1/4″ | 6 lbs |
| 8″ | 8 1/2″ | 9 3/4″ | 4 1/4″ | 10 lbs |
| 10″ | 10 3/4″ | 12 1/8″ | 4 1/4″ | 14 lbs |
| 12″ | 12 3/4″ | 14 1/4″ | 4 1/4″ | 18 lbs |
| 14″ | 14″ | 15 1/4″ | 4 1/4″ | 12 lbs |
| 16″ | 16″ | 17 1/4″ | 4 1/4″ | 14 lbs |
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Casing Size | 6", 8", 10", 12", 14", 16" |
