Petol/Gearench Drill Pipe Chain Tongs Entrance Page

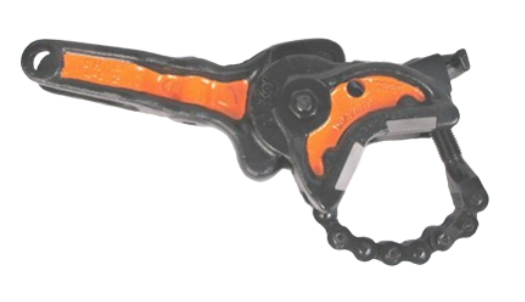

These Petol/Gearench Chain Tongs are designed for making up and breaking out drill pipe, casing, and hammer drills on light rigs.
Click on an image below for product details or to order Petol/Gearench Chain Tongs or parts
Petol Chain Tong 2344 (2 1/8″ – 5″ OD Pipe)

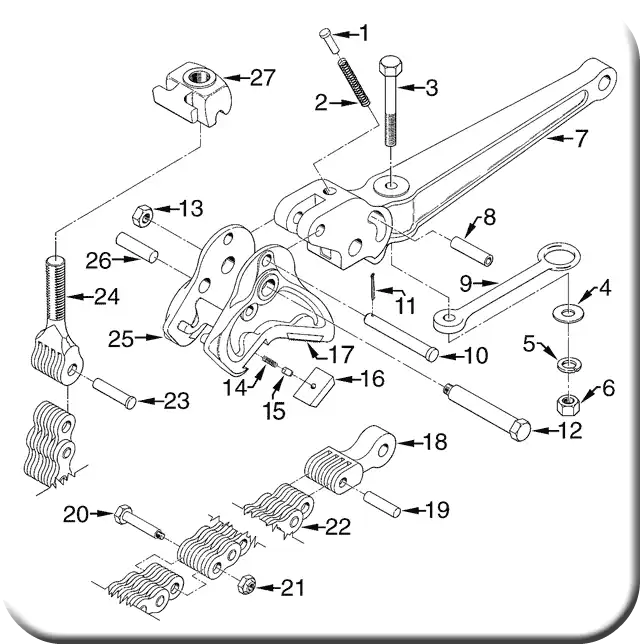

Petol Chain Tong 2344 Parts
Petol Chain Tong 4174 (3″ – 8 1/4″ OD Pipe)
Petol Chain Tong 4174 Parts
Petol Chain Tong 6184 (4 1/4″ – 10 3/4″ OD Pipe)
Petol Chain Tong 6184 Parts
| Catalog # | O.D.* | Gripping Width | Handle Length** | Weight*** |
|---|---|---|---|---|
| DA1344 | 1 – 6″ | 4″ | 8″ | 12 lbs. |
| DA2344-C12 | 2 1/8 – 5″ | 4.44″ | 12″ | 27 lbs. |
| DA2344-L21 | 2 1/8 – 5″ | 4.44″ | 21″ | 31 lbs. |
| DA4174-L08 | 3 – 8 1/4″ | 5.00″ | 8″ | 40 lbs. |
| DA4174-C12 | 3 – 8 1/4″ | 5.00″ | 12″ | 43 lbs. |
| DA4174-L21 | 3 – 8 1/4″ | 5.00″ | 21″ | 45 lbs. |
| DA6184-C10 | 4 1/4 – 10 3/4″ | 4.88″ | 10″ | 49 lbs. |
| DA6184-L36 | 4 1/4 – 10 3/4″ | 4.88″ | 36″ | 74 lbs. |
| DA8184-CO9 | 4 – 14″ | 7.25″ | 9″ | 91 lbs. |
| DA8184-C18 | 4 – 14″ | 7.25″ | 18″ | 120 lbs. |
| DA8184-L23 | 4 – 14″ | 7.25″ | 23″ | 114 lbs. |
| DA8184-L28 | 4 – 14″ | 7.25″ | 28″ | 122 lbs. |
| DA8184-L36 | 4 – 14″ | 7.25″ | 36″ | 129 lbs. |
*Chain assemblies must be ordered separately (see Chain Guides and Torque Tables).
**Call for torque arm lengths.
***Weights do not include chain.
